Thermal orthophoto map - PV analyse

Miroslav

Hello Everyone,

I would like to make detailed thermal orthophoto map. I need make inspection report with all defects on PV solar system. Is it possible with WebODM?

I tried, but...:

  • I generated high resolution orthophoto map in WebODM and yes, it works .. I can switch between "orthophotomap" and "plant health", that's all
  • I found some tips and I made this setup in "Plant health":
  • Algorithm: select "Celsius"
  • Bands: select "Automatic"
  • Color: select "Plasma"
  • yes, I have nice "plasma" picture, but if I zoom in -> I can't see better detail

Thank you
Miroslav

1 Reply

Aeret Best answer

Did you use a DJI thermal drone? Maybe it's good to convert the images to an (open) tiff format first https://webodm.net/thermaltools

you should't use the plant health, that is for Multispectral images. You should see the 'thermal' tab

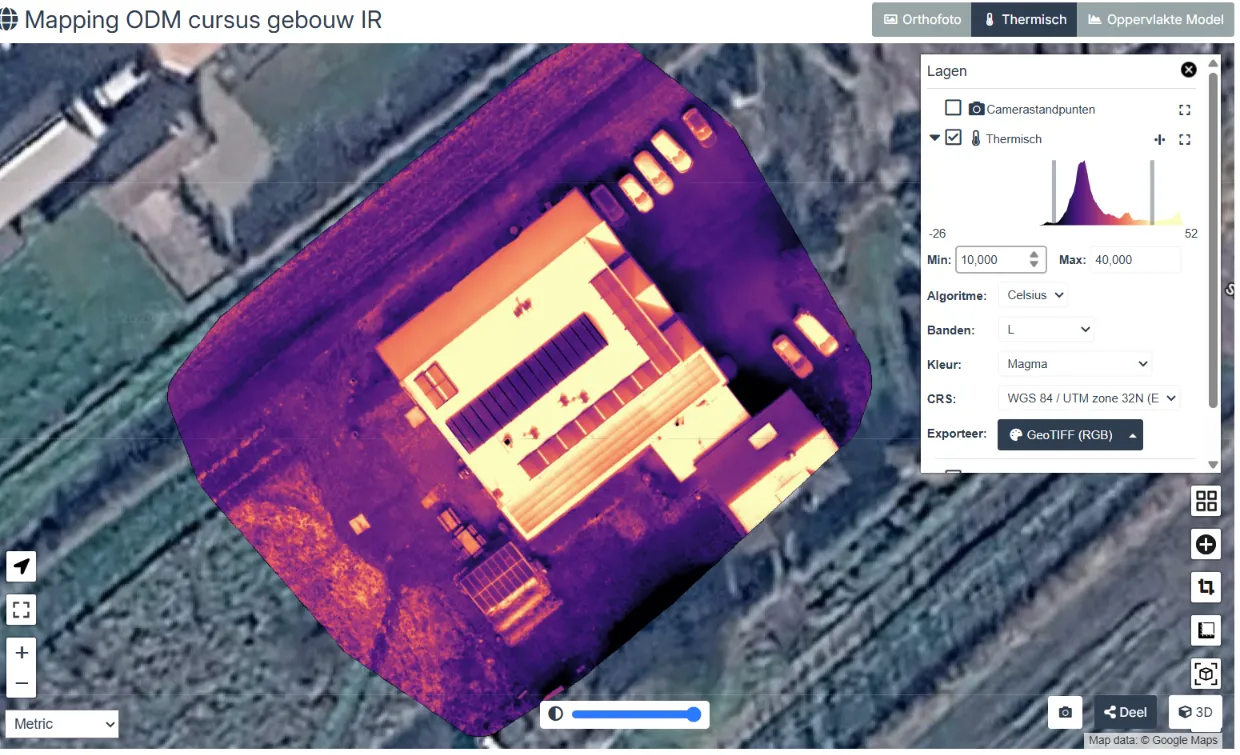

Screenshot posted by Aeret
👍 1
