What is the best way to maximize the output resolution of an Ortho from an M3E? I am capturing in 4:3 ratio, manual focus set to infinity, dewarping is off, capturing in jpg. While the final image is prefectly in focus, I am finding that I lose some resolution when zooming into items on the ground. Its seems that I had better clarity flying the mission at 225 feet as opposed to the 150 foot client requested level. Any suggestions? Thanks!
in previous note @pierotofy said to do set-resolution to lower value... I need to try this out too
OP
Where is this setting?
OP

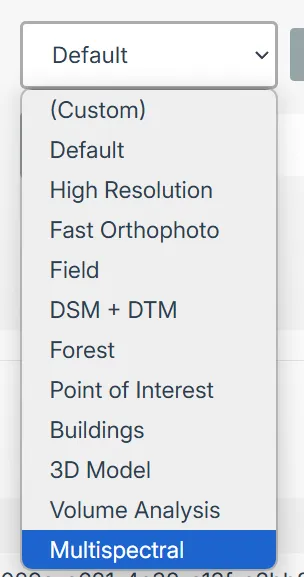

These are my choices
click on 'edit' button next to the drop down menu

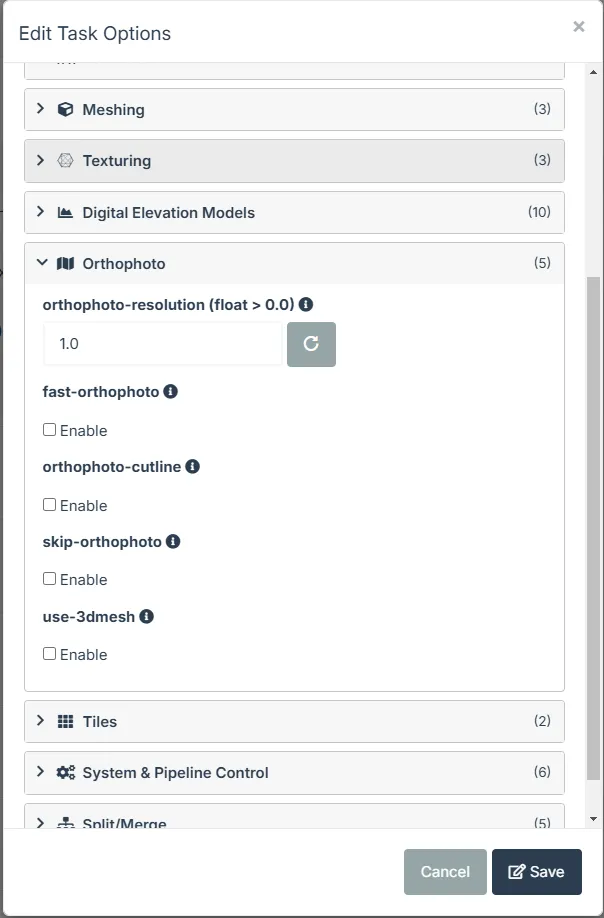

you'll get a pop out and look for the following under 'Orthophoto' dropdown you'll get the following 'orthophoto-resolution (float > 0.0)
OP
Thanks. I am trying it now with some different numnerical settings. I presume a h igher number is a higher resolution? I stand corrected. It got much worse with a higher number.
OP
Looks like the best you will get is a value of 1. Which is "ok". Although I do remember having better quality resolution.
Best answer
The resolution is the effective GSD so lower value = higher resolution. You could set it to something like 0.0001 so that it will use the maximum resolution (lowest GSD) it can calculate from the inputs.
(PS it’s in cm / pixel)
OP
Thanks for the heads up. I didnt know we could enter a fractional number. I'll give it a go and report back.
OP
So the output, while it increase the size of the image, the resoluotion when zooming in remains the same. Pixelated withour clarity.
