Using bicycle dashcam video, no usable results

teagonia

I installed the docker image on my debian 13 machine, and tried to make it generate something from extracted frames from a video taken with my gopro hero8 black mounted on the handlebars of my bicycle, facing forward, parallel to the ground.
After several unsuccessful attempts, I took the gpx track I recorded with my phone, and georeferenced and extracted the frames with mapillary_tools, then using JOSM I moved them along the gpx to be in an approximate correct place.

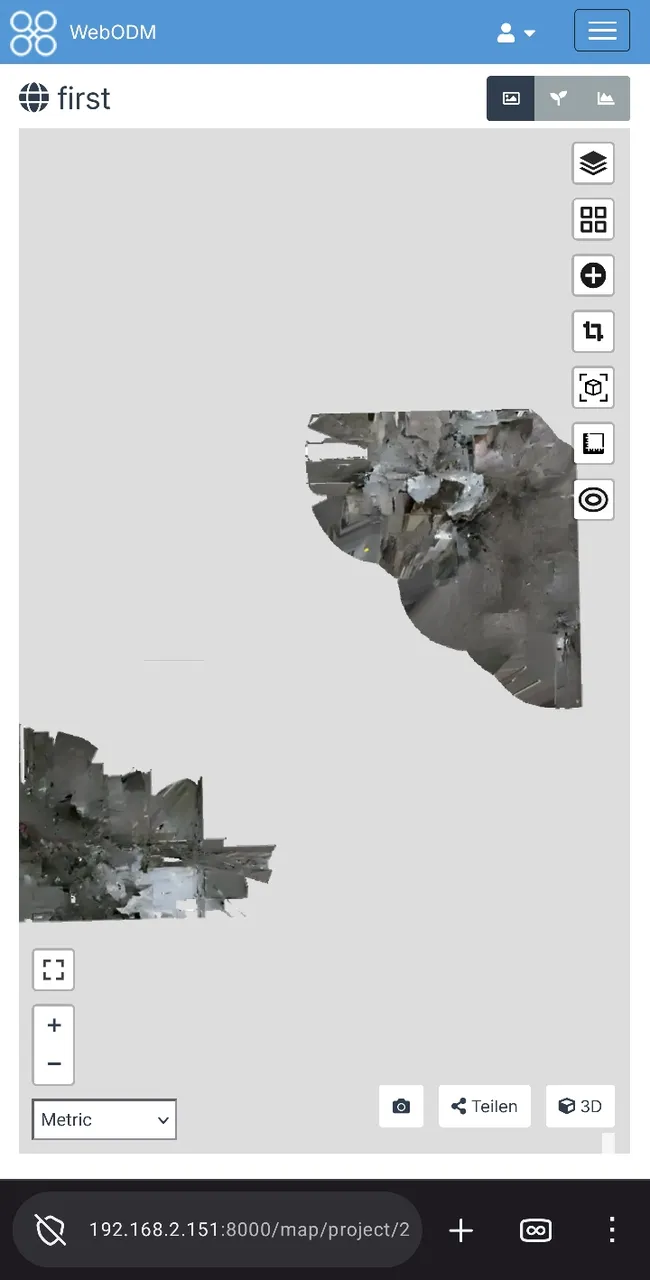

With these georeferenced stills the process was more successful than before, but still nothing remotely recognizable.
In the end I let it run with all the ca. 5000 frames, hoping more data=more better.

What should I do, to generate something from this kind of recording? How do I make it "accept" this, such that it correctly works out the orientation, placement, etc.?

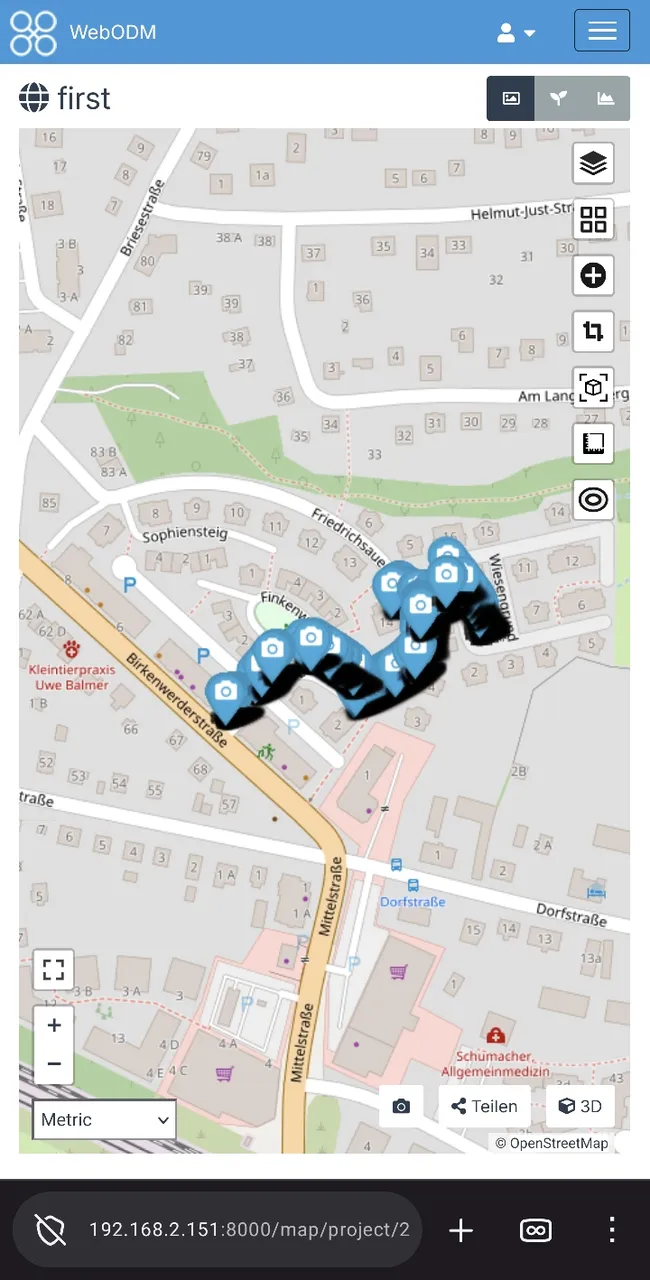

It seems like the camera positions are correct enough for even the non-georeferenced images (using one frame every 0.25s, totalling about 350 images or so, for example)

25 Replies

teagonia OP
teagonia OP

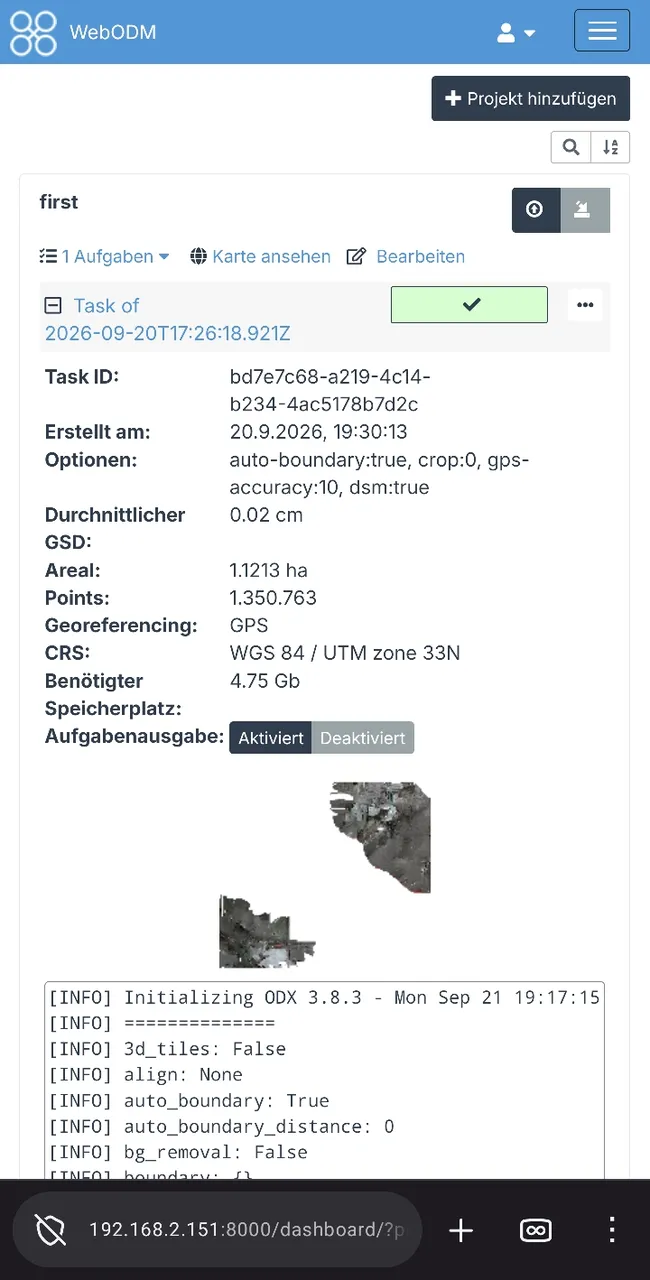

Thats only the tail of the output, since it ram for so long and printed a lot I guess.

teagonia OP
Jet86

What are you trying to generate?

teagonia OP

Ideally I'd like to have orthophotos to use for OpenStreetMap

Jet86

You won’t get orthophotos from a camera facing forwards. You need nadir images, or at least images angled towards the ground…

pierotofy

Share the dataset if you can 🙏

Jet86

Oh is it a 360 camera, or just forward facing? Maybe I misunderstood.

Jet86

Hero8 is not 360 so I wouldn’t have thought it would capture the required detail?

teagonia OP

No, the hero8 I used is not 360.
I would have thought that so much front-facing data would give me at least some kind of results though.
But I guess if the view-angle of the setting I used isn't big enough?
It's a bit disappointing though.

teagonia OP

That's an example of the kind of images.
I don't want to make it public as it contains other license plates, people, faces and I don't want to anonymize it just for that

Jet86

As I understand it, you kind of need it to capture images from all angles (or at least, multiple angles) so that it can build up the 3D model, and for it to build an orthophoto (ie 2D top-down) it would need to be above the features so that it’s able to capture the features and match the images to build the ortho. 🤔

teagonia OP

Hm, so it'd be better to have gone the same path forward and backward?
Essentially simulating an array of cameras via multiple passes instead of using multiple cameras at once.

teagonia OP

Still, I'd assume that driving past something means it has enough angles of at least some of the things, mostly of that which is close to the kerb.

Jet86

I think you’d at least have better chance of it finding matching features if you did that 🤷♂️

teagonia OP

right, of course, ok.

teagonia OP

https://www.mapillary.com/app/?pKey=1633345693801133
I tried to use a few 360 images, downloading my sequence from mapillary, and my pc now runs out of memory during the renderdem step.
I have 32G of RAM, and (for something else I don't remember) I have 80G swap, both were full.
I set feature-quality and pc-quality to lowest, I don't see any other obvious setting which would influence memory usage, I hope that's enough.
Or I could use less Images, but then I'd need to stitch final outputs. which I'd like to avoid

teagonia OP

I don't know what he did so differently, but my attempts at this have failed so far.
enabling bg-removal and sky removal helped though.
but I don't get recognizable point clouds.
with other settings (camera-lens: equirectangular, as it's what exiftool says the projection type if) I only got an error; "This is likely an unsupported camera model."

teagonia OP
teagonia OP
teagonia OP

Jake Coppinger also mentions "You will likely need to enable “resize images” to 2000px or it is very easy to run out of memory."; I don't see that option though.

GenAnon

Did you try setting the camera to spherical?

teagonia OP

Yes
